-132 1x1200
31.3-00214534-060:2011

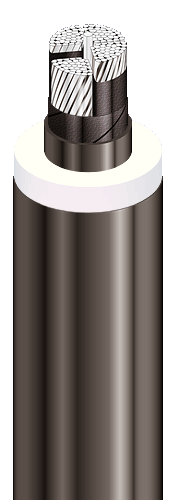

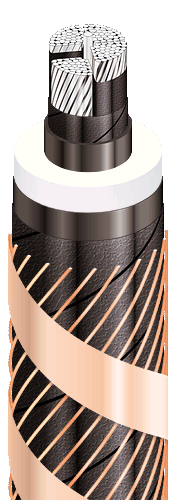

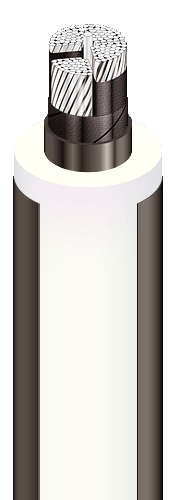

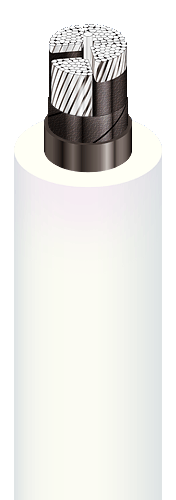

Power cables with aluminium conductor, with XLPE, longitudinal screen sealing and polyethylene outer sheath
For the cable of this mark correspond the foreign-made analogues:
NA2XS2Y (DE) NA2XS(F)2Y (DE) A2XS2Y (DE) A2XS(F)2Y (DE) Al/XLPE/CWS/MDPE (GB) XUHAKXS (PL) XHAKXS (PL)  (RU)  (RU)
Technical cable requirements correspond to IEC 60840
Cables are used for laying:
in soil (trenches)
in the air, including cable structures, if provided the additional fire protection
It is possible to manufacture cables with extruded semiconductor layer along outer sheath.
Order entry example:
-ϖ132 1x1200/95 31.3-00214534-060:2011
An extruded semiconductor layer along outer sheath ensures the correct testing of cable line with sections of underground laying in polymer pipes. To learn more.
It is possible to manufacture cables with an integrated fiber-optic module.
Order entry example:
-132 1x1200/95 () 31.3-00214534-060:2011
In conjunction with the DTS system, the integrated fiber-optic module can act as a distributed cable line temperature sensor. To learn more.
It is possible to manufacture cable with sealed conductor.
Order entry example:
-132 1x1200/95 () 31.3-00214534-060:2011
